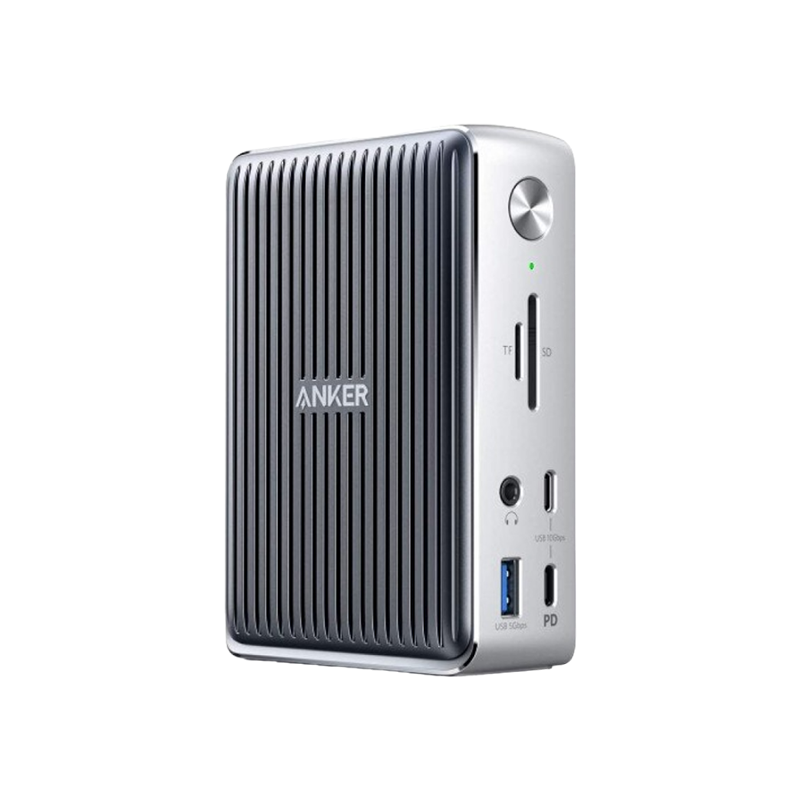

Anker 577 Thunderbolt Docking Station (13-in-1, Thunderbolt 3)

Model Number: A8396

Anker 577 Thunderbolt Docking Station (13-in-1, Thunderbolt 3)

Connect Everything Imaginable

What’s in The Box:

Anker 577 Thunderbolt Docking Station (13-in-1, Thunderbolt 3), 180W Power Adapter, Thunderbolt 3 Cable (2.3 ft), Welcome Guide.

Dimensions and Weight

Dimensions: 125.8 × 88.5 × 41.9 mm / 4.9 × 3.5 × 1.6 in

Weight: 490 g / 17.3 oz

Notes:

The cable connected to your laptop must be a Thunderbolt 3 cable.

*The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Compatibility Information

Host Requirements:

- Thunderbolt Laptops

- Non-M1 MacBooks

Supported Operating Systems:

- macOS 10.12 or later, Windows 8 / 10 / 11

- Does not support Linux or Chrome OS



Media Display Information

When connected to a single monitor:

- 5K (5120×2880@60Hz) via the Thunderbolt 3 downstream port;

- 4K (3840×2160@60Hz) via the HDMI port.

When connected to dual monitors:

- 4K (3840x2160@60Hz) via the Thunderbolt 3 downstream port and HDMI port.

Note: For MacBooks with an M1 chip, Anker 577 Thunderbolt Docking Station (13-in-1, Thunderbolt 3) can not connect to two monitors at the same time.

Charging Information

This dock supports up to 85W of charging via the Thunderbolt upstream port on the back of the dock (indicated by a laptop symbol). The USB-C Power Delivery port (indicated by “PD”)  and the Thunderbolt downstream port (indicated by a thunderbolt symbol) support 18W and 15W fast charging for your phone or tablet. The USB-A 3.0 port on the front supports 7.5W to charge smaller devices like smartwatches or headphones. The three USB-A data ports on the back of the dock do not support charging.
